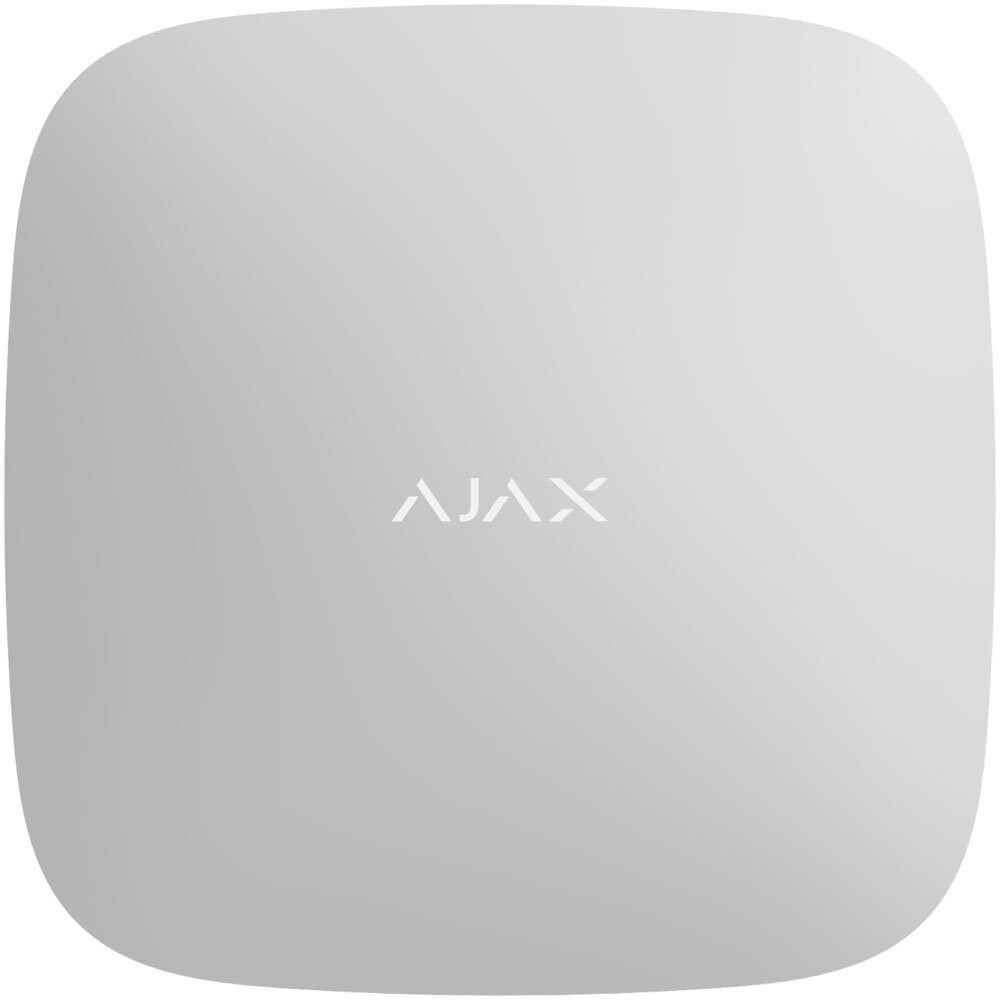

Ajax ReX White

Boosts the range of all Ajax security system devices.

Security on a massive scale

ReX is the radio signal range extender that boosts the range of all Ajax security system devices and manages their communication with the hub. The intelligent radio signal range extender enables users to place Ajax devices at a considerable distance from the hub for protecting multi-story offices, detached buildings, and even production plants. Connecting 5 ReXs to the security system extends its coverage to up to 35 km².

Features

• Transmits alarms in 0.3 seconds
• Communicates at a distance of up to 1800 m
• Operates up to 35 hours on the back-up battery

Reliable link for secure communication

ReX can manage some or all the devices in the system. Yet, the number of connected devices does not affect the alarm delivery speed.

Up to 5 range extenders can operate in the security system:

• Hub - 1 ReX
• Hub Plus - 5 ReX
• Hub 2 - 5 ReX
• Hub 2 Plus - 5 ReX

Enhances the security system

ReX integrates the devices into an autonomous group within the system. The extender takes full control of the situation if the connection with the hub is interrupted for some reason. If one of its detectors sends an alarm signal, ReX may activate the siren to attract attention to the incident and scare off the burglar.

The second decision-making center

ReX runs on OS Malevich and is as capable as the hub. The intelligent extender manages its connected devices and makes critical decisions in a blink of an eye. The capabilities and the role of ReX in the security system continue to evolve with the free OS Malevich updates available for all the users.

• Always in sync with the hub
• Immediate reaction to threats
• New features with every system update

Holds off the intruder attacks

The OS Malevich unique operation logic protects ReX against software and hardware attacks and makes it resistant to viruses or exploits. Moreover, all the ReX communications are encrypted, which makes any signal interception practically impossible. And even during a blackout, ReX will continue to stay on guard of your property using the in-built back-up battery.

• Functions up to 35 hours after power outage
• All data is encrypted using a block cipher with a dynamic key
• Notifies of jamming and tampering with the device body

Intuitive connection and installation

To connect ReX to the system, scan the QR code, name it, and switch it on. Then, select the devices which should operate via the range extender from the list. Proceed by installing ReX in a safe spot. No disassembling required. Just use the SmartBracket mount.

• QR code for simple connection
• SmartBracket mount for quick set up
• Mobile application for configuring and testing

Technical Specifications

• Classification: Radio channel range extender
• Device type: Wireless
• Installation method: Indoors
• Compatibility: All Ajax hubs, Doesn’t support MotionCam
• Alarm signal delivery time: 0.3 seconds
• Maximum connected devices (in a system with one range extender): Hub, Hub 2 — up to 99, Hub Plus — up to 149, Hub 2 Plus — up to 199
• Max number of connected ReX per hub*: Hub — 1, Hub Plus/Hub 2/Hub 2 Plus — 5 (ReX can only be directly connected to the hub. ReX cannot be connected to another ReX)
• Operating system: OS Malevich
• Power supply: 110-240 V from mains or 12 V when using 12V PSU for Hub/Hub Plus/ReX, Built-in back-up battery: Li-Ion 2 А·h, Up to 35 hours of offline operation
• Jeweller radio technology: Communication range with detectors — up to 1,800 m in an open space, Two-way communication between devices, Operating frequencies — 868.0 - 868.6 MHz, Self-adjusting RF output power — up to 25 mW, Block encryption based on AES algorithm, Detector polling period — 12−300 s, Frequency hopping
• Operating temperature range: From −10°С to +40°С
• Permissible humidity: Up to 75%
• Anti-sabotage: Protection against fraud, Jamming detection, Tamper-resistant
• Dimensions: 163 × 163 × 36 mm
• Weight: 330 g
• Warranty: Within 24 months from the date of sale
• Complete set: Intelligent radio signal range extender ReX, SmartBracket mounting panel, Power cable, Installation kit, Quick Start Guide
• Service life: 10 years
