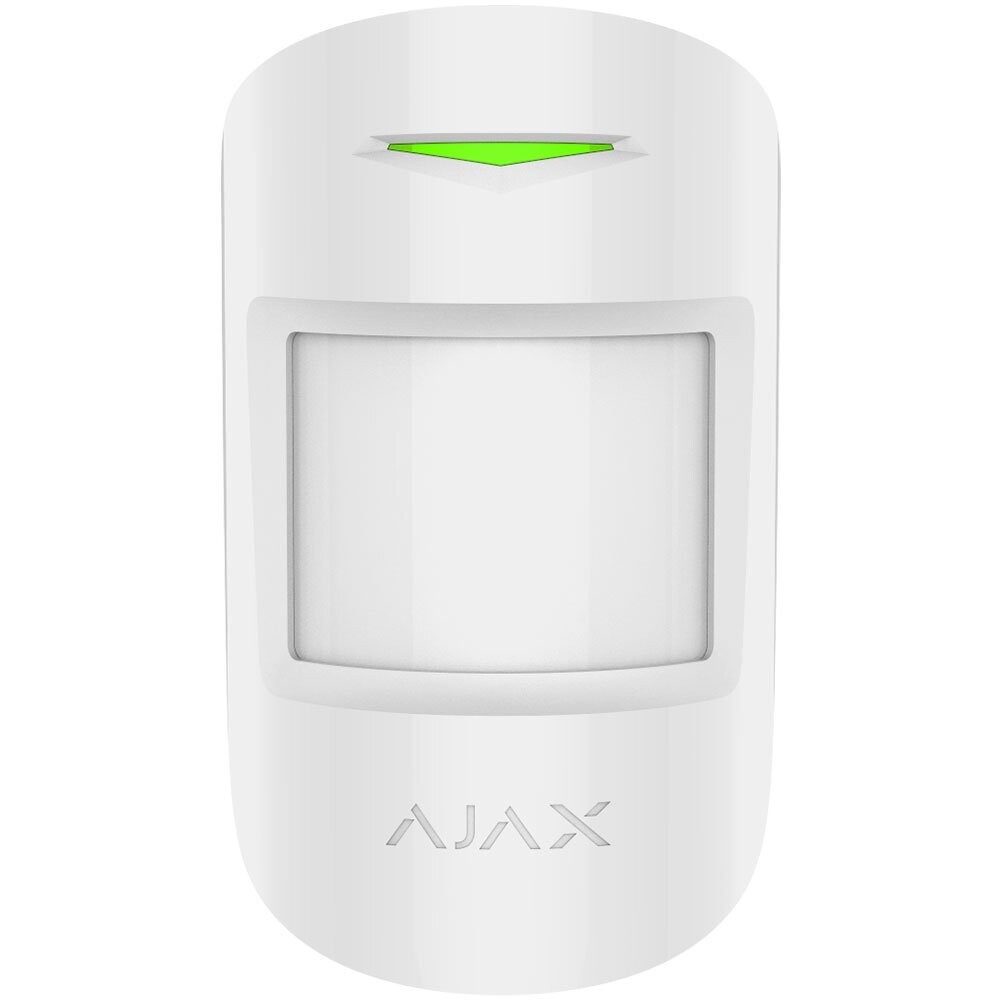

Ajax MotionProtect Plus White

Wireless motion detector with microwave sensor that notifies the owner of first signs of home or office intrusion. Designed for rooms with air conditioners, fireplaces and where there is a likelihood of light flickering, glare and reflections.

Features

• Authentication to prevent forgery
• Jamming detection and communication channels encryption
• Tampering alarm
• The additional microwave sensor filters possible interference from the air conditioner and curtain movement
• The device operates up to 5 years without battery replacement
• Ignores pets weighing up to 20 kg and with a height up to 50 cm

Principle of operation

Detects human presence by temperature difference with background thermal radiation. The microwave sensor prevents false alarms caused by complex interference.

Designed for operation in rooms with fireplaces and air conditioners. Detects and ignores draughts, movement of curtains and blinds, and light flickering, glare and reflections.

Installation and set up

Ready to operate straight out the box. The battery is already installed inside, therefore there is no need to disassemble the detector. It can be mounted in just a few minutes using the SmartBracket mount.

Technical Specifications

• Classification: Electro-optical combined radio channel security detector
• Type of detector: Wireless
• Installation method: Indoors
• Compatibility: Operates with all Ajax hubs, range extenders, ocBridge Plus, uartBridge
• Sensing element: PIR sensor, microwave sensor (24 GHz)
• Alarm signal delivery time: 0.15 s
• Motion detection distance: Up to 12 m
• Detection angles: Horizontal — 88.5°, Vertical — 80°
• Time for motion detection: From 0.3 to 2 m/s
• Sensitivity: Adjustable, 3 levels
• Recommended installation height: 2.4 m
• Pet immunity: Weight — up to 20 kg, Height — up to 50 cm
• Power supply: Battery: CR123A battery, 3 V
• Battery life: Up to 5 years
• Jeweller radio technology: Communication range with central unit — up to 1,200 m in an open space, Two-way communication between devices, Operating frequencies — 868.0-868.6 MHz, Self-adjusting RF output power — up to 20 mW, Block encryption based on AES algorithm, Detector polling period — 12−300 s
• Temperature sensor: Available
• Operating temperature range: +5°С to +40°С
• Permissible humidity: Up to 75%
• Anti-sabotage: Protection against fraud, Jamming detection, Tamper-resistant
• Remote setting and testing: +
• Dimensions: 110 × 65 × 50 mm
• Weight: 96 g
• Warranty: Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.
• Complete set: MotionProtect Plus motion detector, SmartBracket mounting panel, CR123A battery (pre-installed), Installation set, User’s guide
• Service life: 10 years
