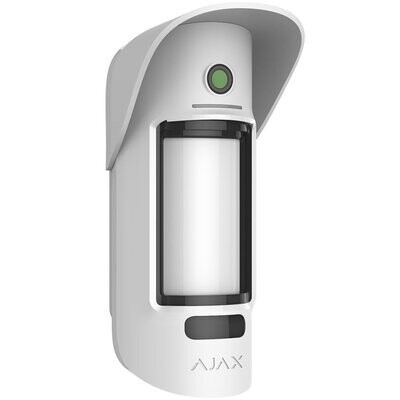

Ajax MotionCam Outdoor

Wireless outdoor motion detector with a photo camera to verify alarms.

Lightning-fast alarms. Verified.

MotionCam Outdoor recognizes intrusion from the very first steps on the territory and confirms it with an animated series of photos. Visual verification helps to instantly ascertain the situation, saving users from concerns, and security companies from unnecessary patrol dispatches.

1. Motion detected
2. Alarm raised
3. Evidence captured

Don't miss a thing

Combining the best optics, fast processor and advanced software algorithms, MotionCam Outdoor takes informative pictures in any weather, day or night.

Camera designed to guard

An outdoor camera often has to shoot in difficult lighting conditions. Direct sunlight, reflective surfaces, or street lights can blind the camera, depriving the image of critical details. This is unacceptable for a security device. We were challenged to get a clear and sharp image that would confirm intrusion in seconds and allow security companies to react in time.

Quality is in the details

We have rejected plastic optics to make a waterproof lens out of glass and metal. The wide-angle lens covers the entire protected area, giving a complete picture of what is happening. In bright light, an infrared filter is automatically applied to ensure distortion-free color reproduction, and two bright IR LEDs help to see the intruder even in total darkness.

HDR

To take one photo, MotionCam Outdoor takes two consecutive shots at long and short exposures. The processor instantly combines the shots, equalizing the balance between light and dark areas of the image, and then compresses it for the fastest transmission.

Thanks to the HDR, the detector uses less IR backlight at night and saves battery.

Intelligent false alarm filter

MotionCam Outdoor is equipped with two independent PIR sensors, the signals of which are analyzed by a two-step LISA algorithm. When both sensors detect motion, LISA performs correlation and spectral analysis of the signals, which helps to instantly distinguish real threats from interferences.

Correlation analysis

Whenever MotionСamOutdoor detects motion, LISA analyses and compares signal forms from two sensors in real-time. If forms are similar, the alarm is activated.

Spectral analysis

When both sensors detect motion, but the correlational analysis doesn’t identify enough similarities, LISA compares frequency components in the signals of both sensors.

Multilevel anti-sabotage protection

MotionCam Outdoor can not be unnoticeably disabled even if the system is disarmed. The detector is equipped with masking sensors reacting to hindering, covering and painting the lens.

It will take the hub less than a minute ¹ to detect the loss of communication with the detector and inform a central monitoring station and users about the problem. The fact that MotionCam Outdoor was dismantled will become known instantly.

• Anti-masking system
• Notifications about detachment
• Configurable detector ping interval

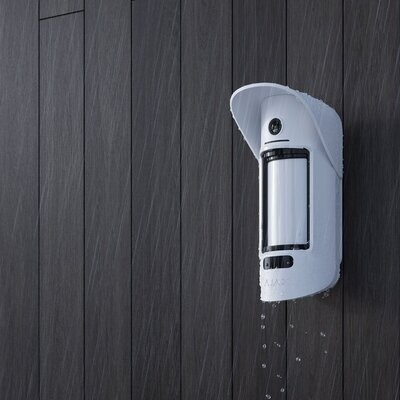

Effective security in any weather

MotionCam Outdoor resists the heat up to +60°С and withstand the cold down to −25°С. And to protect the sensors of the anti-masking system from rain and snow, we included a special hood.

• Efficiency in heat and cold
• IP55 enclosure protection
• Bundled hood to protect from rain and snow

Uncompromising communication reliability

MotionCam Outdoor uses two secure radio protocols simultaneously: Jeweller and Wings. Radio protocols work independently of each other and each is focused on its own function. Jeweller transmits alarms in 0.15 seconds, and thanks to Wings, the first shot from the site will be in the app in less than 9 seconds ² .

The radio signal range is sufficient to install the detector where it will be most effective. And up to 3 years of battery life minimizes maintenance efforts.

• Two-way communication at a distance of up to 1,700 meters
• Photo delivery in less than 9 seconds
• Up to 3 years of battery life

Less manual labor. More settings in the app.

The process of connecting and configuring MotionCam Outdoor saves installation engineers time in the best possible way. To add a detector to the system, all you have to do is scan the QR code with the Ajax app, assign a name and a room to it. Configure the device in the app in real time,test detection zones and communication. If necessary, the detector can be disabled or its system parameters can be reconfigured remotely, without visiting the site.

• Connecting - Adding to the security system via QR code

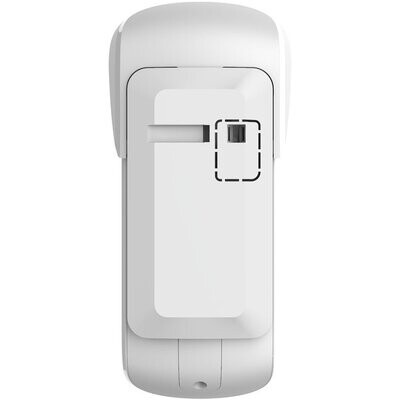

• Installation - Mounting using SmartBracket without disassembling the body
• Set up - Configuring in the app

Technical Specifications

• Classification: Electro-optical radio channel security detector
• Type of detector: Wireless
• Installation method: Outdoors / indoors
• Recommended installation height: 0.8 – 1.3 m
• Compatibility: Hub 2, Hub 2 Plus; Not compatible with ReX radio signal range extender
• Sensing element: 2 × PIR sensor
• Motion detection distance: Adjustable, from 3 to 15 m
• Pet immunity: Animals up to 80 cm tall
• Sensitivity: Adjustable, 3 levels
• Motion detector’s viewing angle: Horizontal - 88,5°, Vertical - 80°
• Camera’s angle: Horizontal - 105°, Vertical - 50°
• Distortion: Barrel, -77%
• Photo in case of alarm: Photo resolution: 320 × 176 pixels (by default), 640 × 352 pixels; Shooting series up to 5 photos
• Infrared light for shooting in the dark: Available
• Power supply: 4 × CR123A batteries
• Supply voltage: 3 V
• Battery life: Up to 3 years (up to 2.5 years if “Delay when entering” setting is activated)
• Jeweller radio technology: Communication range with a hub - up to 1,700 m in an open space, Two-way communication between hub and device, Operating frequencies - 868.0-868.6 MHz ³ , Self-adjusting RF output power - up to 20 mW, Block encryption with a dynamic key, Detector polling period - 12-300 s, Frequency hopping
• Alarm delivery time: 0.15 s
• Wings radio technology: Transmission of a series of photos, Photo delivery time with a default settings: up to 9 seconds
• Temperature sensor: Available
• Operating temperature range: From –25°С to +60°С
• Operating humidity: Up to 95%
• Protection class: IP55
• Anti-sabotage: Anti-masking, Protection against forgery, Jamming detection, Tamper-resistant
• Remote configuration and testing: Available
• CMS compatibility: CMS connectivity: Contact ID, SIA (DC-09)
• Dimensions: 206 × 108 × 93 mm
• Weight: 470 g
• Warranty: 24 months from the date of sale
• Complete set: MotionCam Outdoor motion detector, SmartBracket mounting panel, Hood visor, 4 × CR123A batteries (pre-installed), Installation kit, User’s guide

¹ With the Hub — Detector polling period of 12 seconds
² Photo delivery time depends on image resolution, selected in device settings
³ Depends on the region of sale
