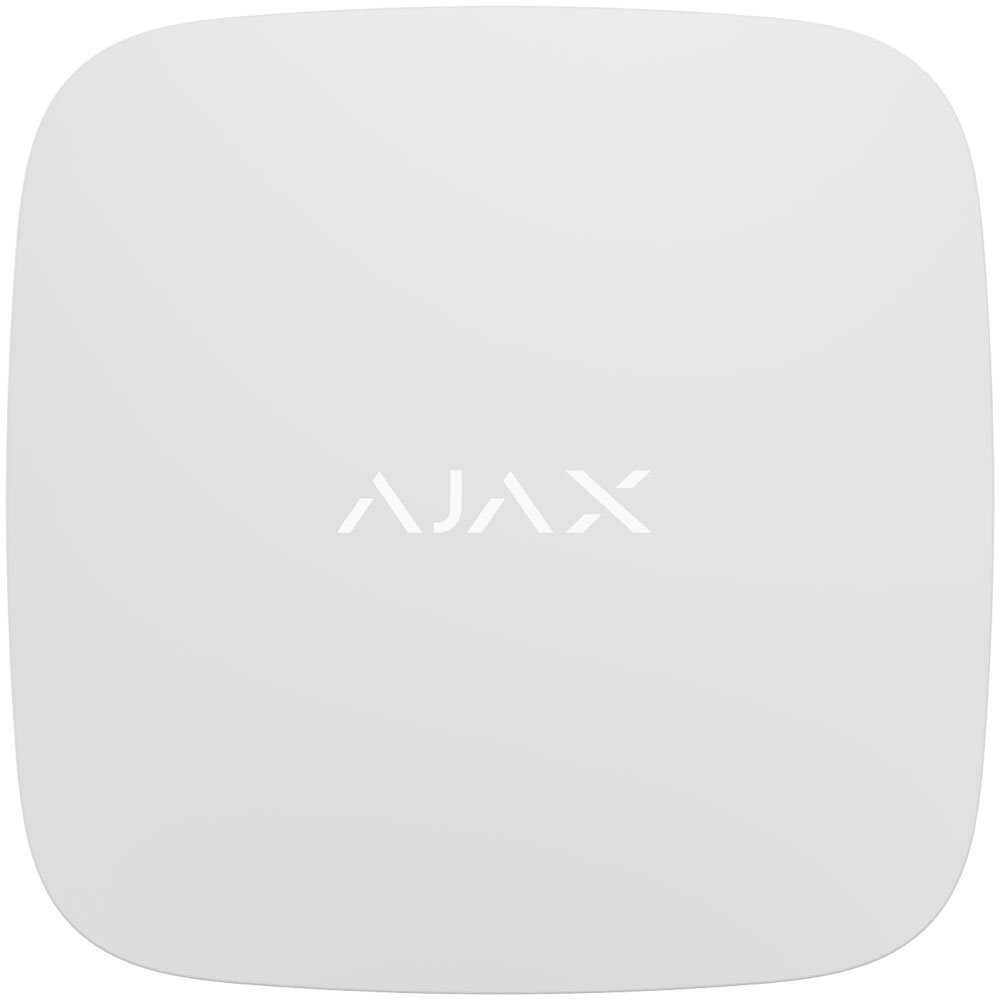

Ajax LeaksProtect White

Wireless addressable leak detector.

Constant control. Instant notifications.

LeaksProtect can be placed even in hard-to-reach places. It doesn't require installation, goes years without maintenance, and works 24/7. If your washing machine leaks or a pipe breaks, the detector will react immediately and report an accident. And if the facility has an anti-flooding system, Ajax will automatically shut off water supply.

Wherever there is a risk of flood

Miniature LeaksProtect detectors will fit anywhere, where water leaks are likely to happen. The device height is only 14 mm.

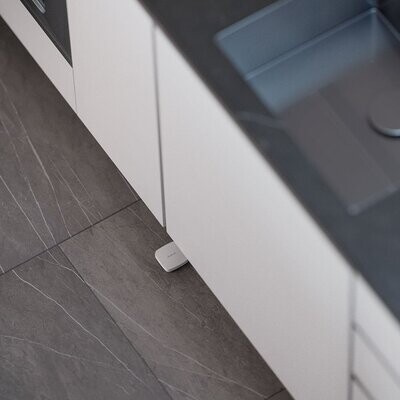

• Under the sink
• Under the bathtub

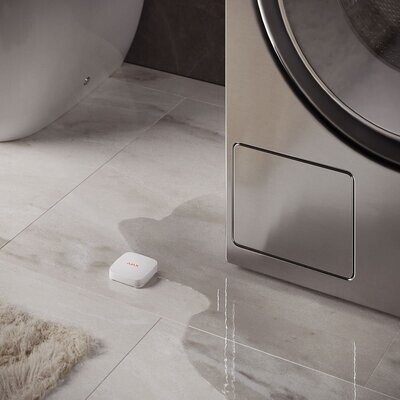

• Under the washing machine
• In the sewer riser
• Under the dishwasher

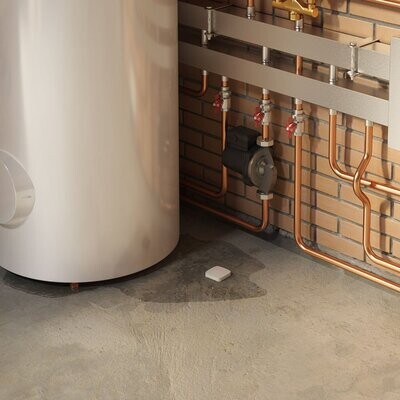

• In the boiler room

Effective minimalism

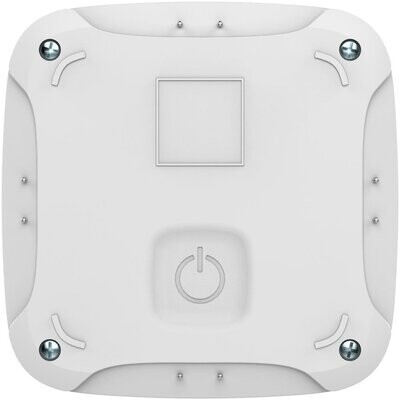

When the water reaches the detector, it immediately raises the alarm. No matter which side. All four sides of the LeaksProtect have contact pairs. If at least one of them contacts water, the detector reports a leak. When the contacts dry out and open, it notifies you that the leakage has stopped.

• Up to 5 years of operation from battery
• Works 24/7
• IP65 housing

Against small leaks and big floods

LeaksProtect detectors can protect from flood both small apartments and commercial centres/industrial complexes. If an accident happens, informative notifications will let you know where to send the plumbers.

• Up to 200 detectors in the system
• Name and room of the detector location in the notification

Anti-flooding and water supply management

LeaksProtect leak detectors, Relay or WallSwitch relays, and electrovalves can be used to create a smart water control and anti-flooding system.

Automatic water shutoff when a leak is detected

• Water
• LeaksProtect
• Relay
• Electrovalve

Automatic disabling when the system is armed/disarmed

• Arming mode change
• Relay
• Electrovalve

Manual water shutoff via the app

• Command
• Relay
• Electrovalve

Scheduled water supply

• Schedule
• Relay
• Electrovalve

Guaranteed alarm delivery

We have developed the Jeweller radio protocol to ensure uninterrupted interaction of all security system devices. The radio protocol uses frames to synchronize device communication sessions, authentication to prevent forgery, and encryption to protect against data theft. Also, the protocol is energy-efficient: the detectors run for years on the bundled batteries.

• Two-sided connection on up to 1300 meters
• 5 ReX radio signal range extenders in the system
• Alarm delivery in 0.15 seconds
• Adjustable ping from 12 seconds

Puzzle-free installation

To connect LeaksProtect to the hub, just scan the QR code with your smartphone camera. When installing, there is no need to disassemble the body, attach the device to the surface or install batteries — the detector is simply placed on a horizontal surface in the area of possible leakage and is ready to operate immediately.

1. Connection - Pairing with the system by a QR code
2. Set up - Setting up via the app

Technical Specifications

• Classification: Radio channel water leak detector
• Type of detector: Wireless
• Installation method: Indoors
• Compatibility: Operates with all Ajax hubs, range extenders, ocBridge Plus, uartBridge
• Alarm signal delivery time: 0.15 s
• Power supply: Battery: Two AAA batteries, 3 V
• Battery life: Up to 5 years
• Jeweller radio technology: Communication range with central unit — up to 1,300 m in an open space, Two-way communication between devices, Operating frequencies — 868.0 - 868.6 MHz, Self-adjusting RF output power — up to 20 mW, Block encryption based on AES algorithm, Detector polling period — 12−300 s
• Temperature sensor: Available
• Operating temperature range: 0°С to +50°С
• Permissible humidity: Up to 100%
• Protection class: IP65
• Anti-sabotage: Protection against fraud, Jamming detection
• Remote setting and testing: +
• Dimensions: 56 × 56 × 14 mm
• Weight: 40 g
• Warranty: Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.
• Complete set: LeaksProtect leak detector, Two AAA batteries (pre-installed), User's guide
• Service life: 10 years
