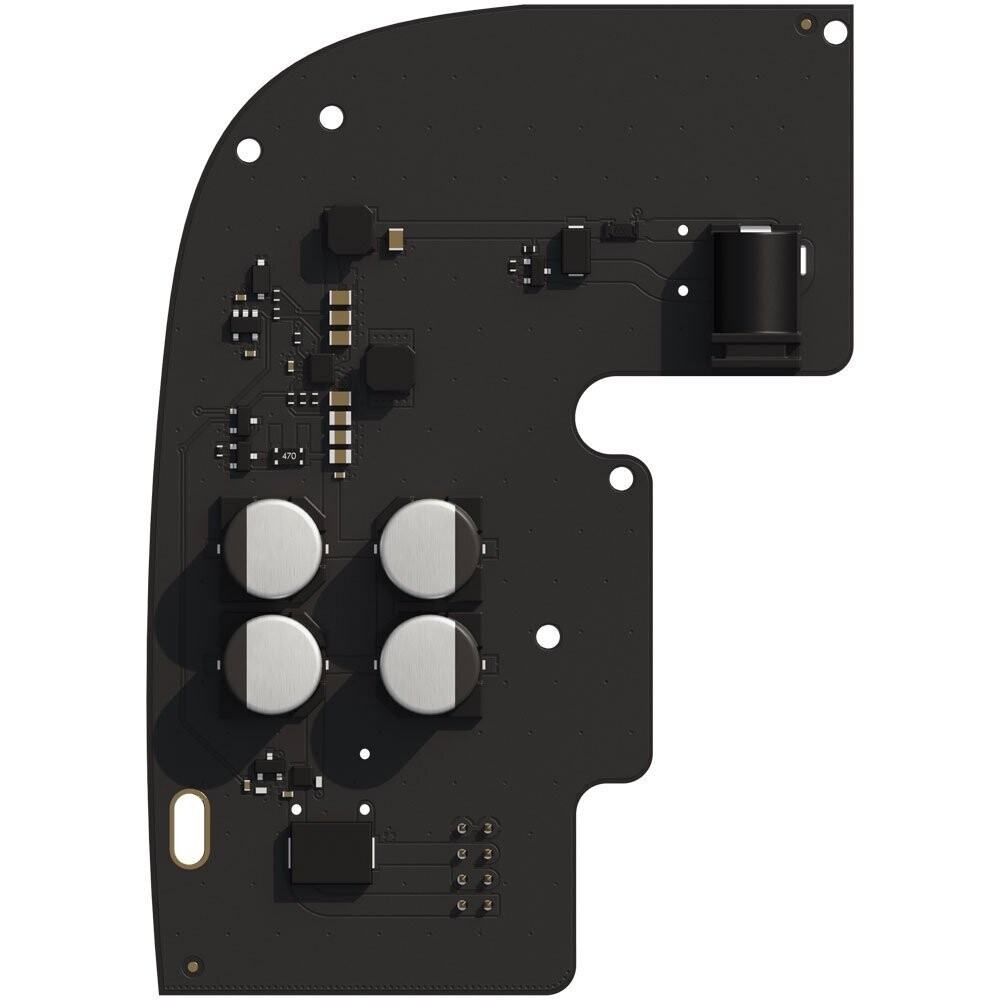

6V PSU for Hub 2 / Hub 2 Plus

Power supply unit for connecting Hub 2 / Hub 2 Plus control panels to a low-voltage power source.

Protecting facilities lacking electricity

With an alternative 6 V power supply unit, your hub can operate from an external battery for years - without being connected to the facility's power grid - and is ready to protect buildings in critical condition, construction sites, or abandoned properties from burglars, vandals, and unauthorized occupation.

• Prevents illegal settling in an empty house
• Protects property from vandals
• Saves construction equipment

Compatibility

The power supply unit is only compatible with Hub 2 and Hub 2 Plus control panels. It has a standard power jack plug to connect the power cable and is supplied with a terminal adapter.

Installation

6V PSU is installed into the device body, replacing the pre-installed 110/230 V power supply unit.

Technical Specifications

• Compatibility: Hub 2 and Hub 2 Plus
• Recommended batteries: Zinc air and alkaline batteries with 4.2-16 V operating power
• Input voltage: 4.2-16 V
• Output voltage: 4.8 V ± 5%
• Switch-on voltage: 4.2 V ± 2.5%
• Switch-off voltage: 3-3.4 V (depending on the load)
• Maximum input current: 2.2 A at 4.2 V; 0.5 A at 16 V
• Maximum output current: 1.5 A
• Plugging in: Plug socket: 6.5 x 2 mm, Plug: 5.5 x 2.1 mm
• Operating temperatures range: From -10°С to +40°С
• Operating humidity: Up to 75%
• Dimensions: 98 × 70 × 17 mm
• Weight: 26 g
• Warranty: Warranty service for 24 months from the date of sale.
• Complete set: 6V PSU for Hub 2/Hub 2 Plus, Terminal adapter, Quick Start Guide
